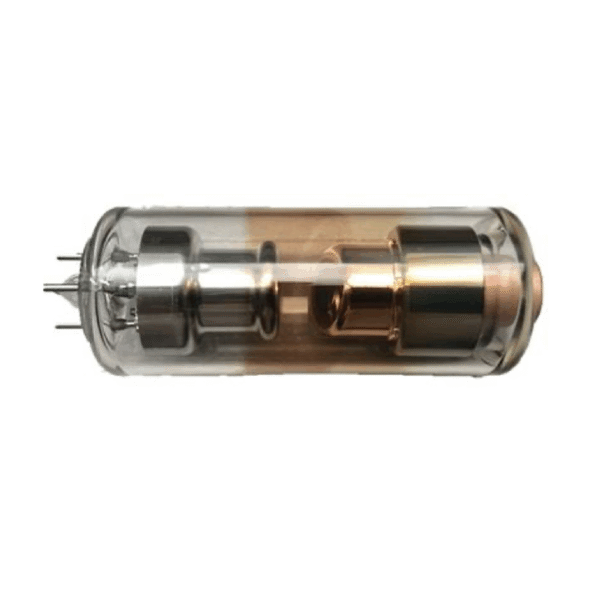

KL45-0.033-80

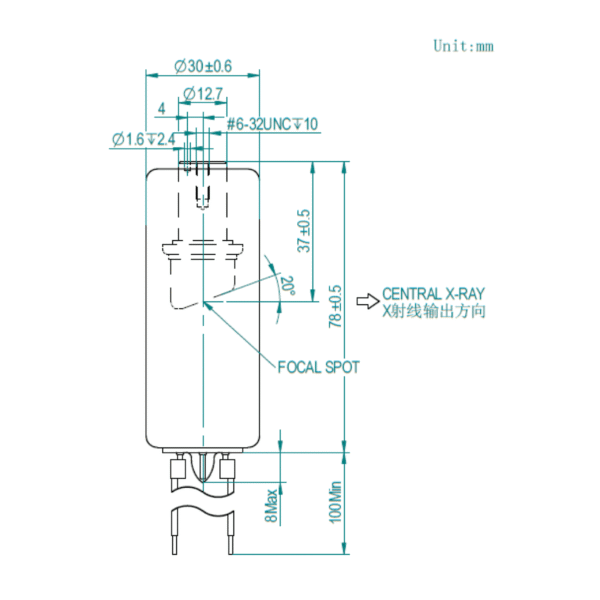

KL45-0.033-80 is a tube model designed for reliable, consistent performance. It features a focal spot size of 0.033 mm, maximum voltage of 80 kV, maximum current of 0.7 mA, and target angle of 20°. Overall dimensions: 78xφ30 mm.
| Focal Spot | 0.033 |
|---|---|
| Max. Rating (W) | 56 |
| Max. Voltage (kV) | 80 |
| Target Angle (°) | 20 |
| Anode Heat Capacity (kHU) | 5 |
| Anode Cooling Rate (W) | 56 |
| Max. Current (mA) | 0.7 |
| Dimensions (mm) | 78xφ30 |
| With SB (mm) | – |
| Applications | mini C-Arm |
