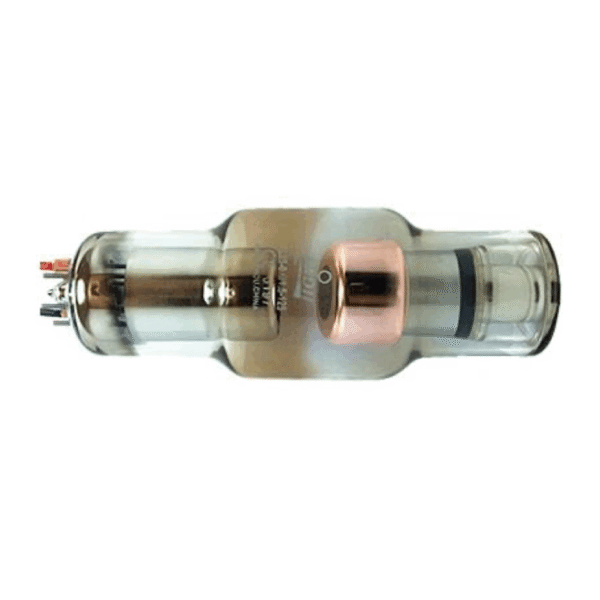

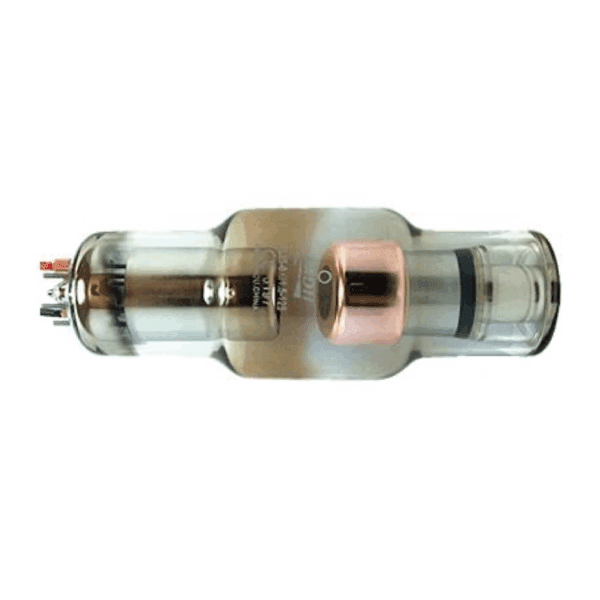

KL3-0.5-130

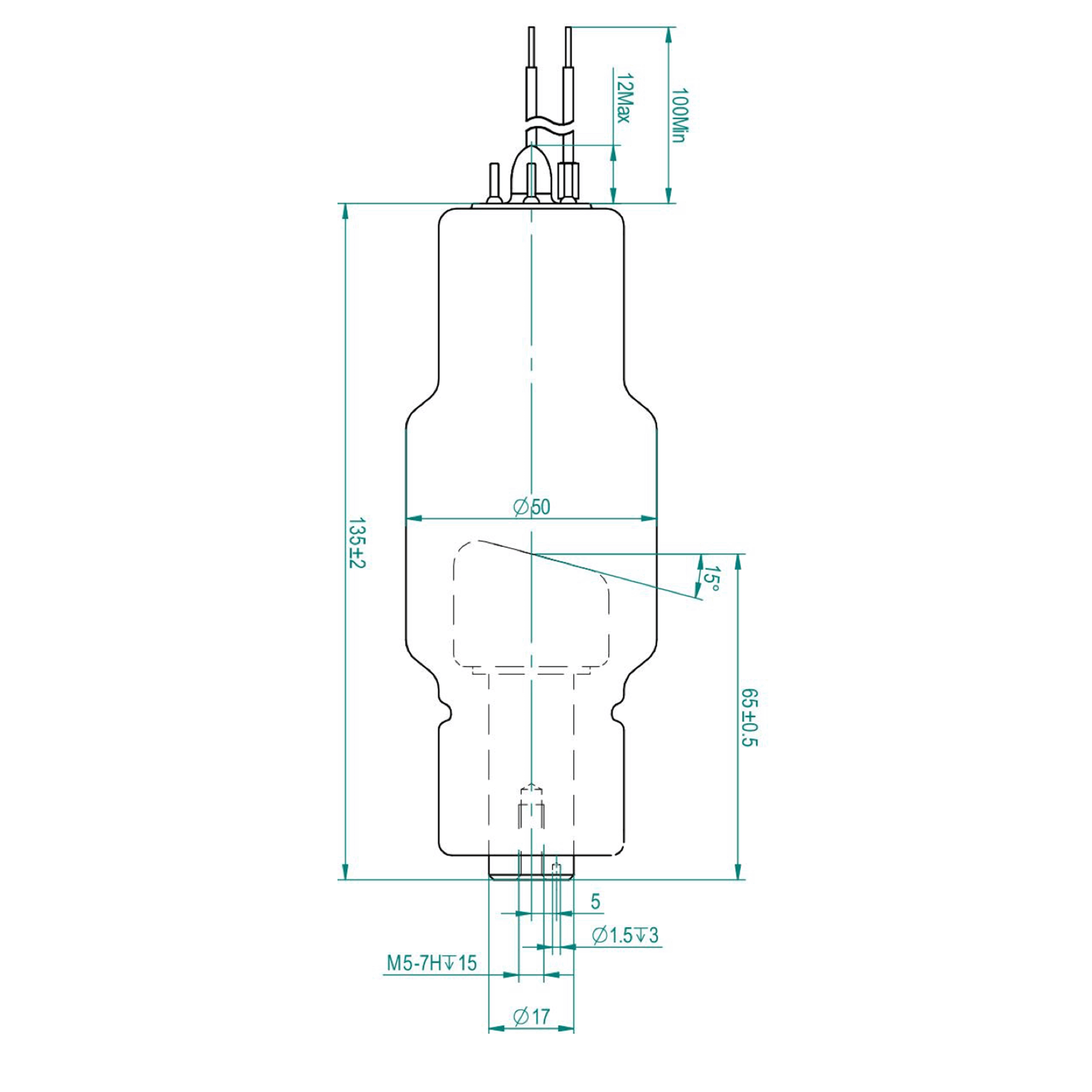

KL3-0.5-130 is a tube model designed for reliable, consistent performance. It features a focal spot size of 0.5 mm, maximum voltage of 130 kV, maximum current of 20 mA, and target angle of 15°. Overall dimensions: 135xφ50 mm.
| Focal Spot | 0.5 |
|---|---|
| Max. Rating (W) | 1270(1s) |
| Max. Voltage (kV) | 130 |
| Target Angle (°) | 15 |
| Anode Heat Capacity (kHU) | 30 |
| Anode Cooling Rate (W) | 275 |
| Max. Current (mA) | 20 |
| Dimensions (mm) | 135xφ50 |
| With SB (mm) | 145xφ61 |
| Applications | CBCT |
