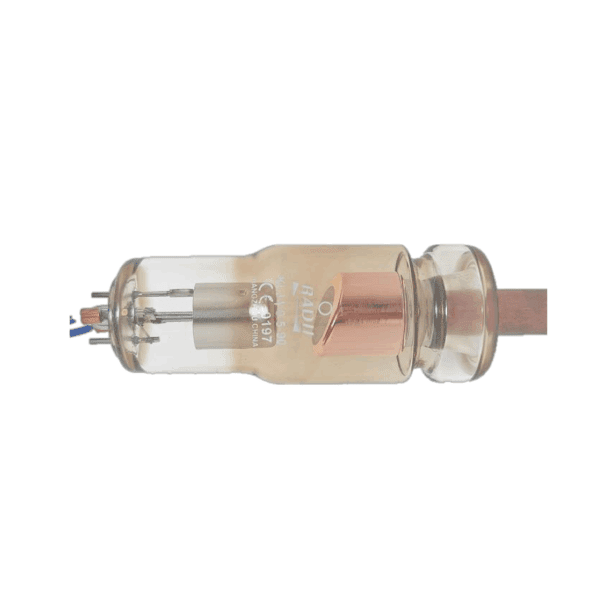

KL34-0.5-90

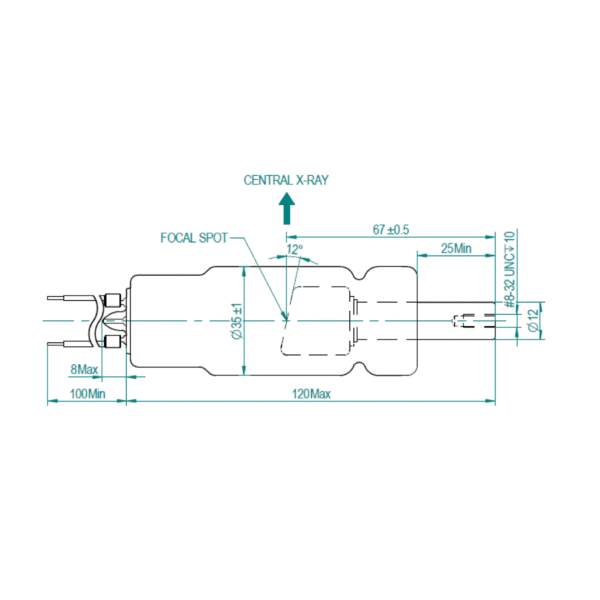

KL34-0.5-90 is a tube model designed for reliable, consistent performance. It features a focal spot size of 0.5 mm, maximum voltage of 90 kV, maximum current of 10 mA, and target angle of 12°. Overall dimensions: 120xφ35 mm.
| Focal Spot | 0.5 |
|---|---|
| Max. Rating (W) | 770 (1s) |
| Max. Voltage (kV) | 90 |
| Target Angle (°) | 12 |
| Anode Heat Capacity (kHU) | 14 |
| Anode Cooling Rate (W) | 150 |
| Max. Current (mA) | 10 |
| Dimensions (mm) | 120xφ35 |
| With SB (mm) | – |
| Applications | Medical |
