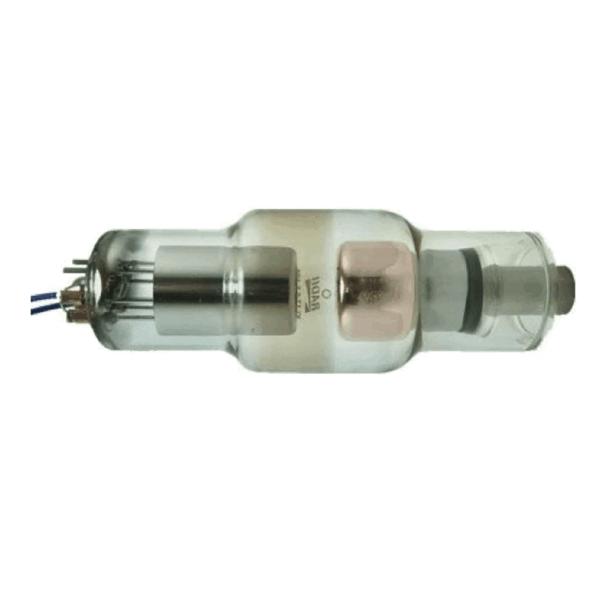

KL24-3.0-125

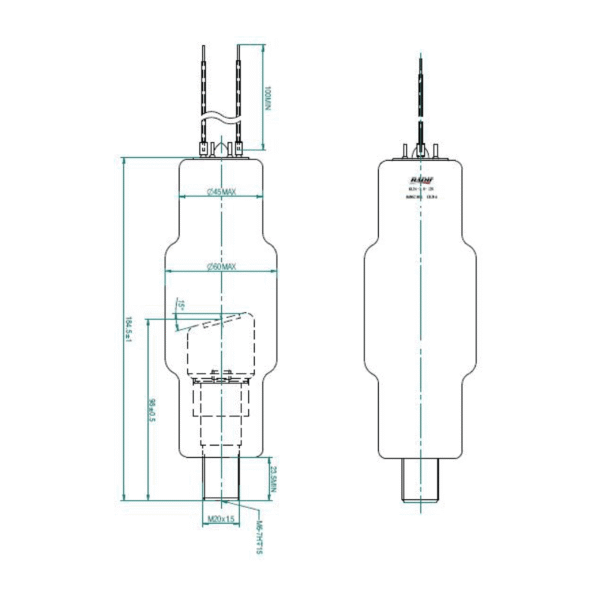

KL24-3.0-125 is a tube model designed for reliable, consistent performance. It features a focal spot size of 3 mm, maximum voltage of 125 kV, maximum current of 150 mA, and target angle of 15°. Overall dimensions: 185xφ60 mm.
| Focal Spot | 3.0 |
|---|---|
| Max. Rating (W) | 7500 (0.1s) |
| Max. Voltage (kV) | 125 |
| Target Angle (°) | 15 |
| Anode Heat Capacity (kHU) | 55 |
| Anode Cooling Rate (W) | 380 |
| Max. Current (mA) | 150 |
| Dimensions (mm) | 185xφ60 |
| With SB (mm) | – |
| Applications | Medical |
