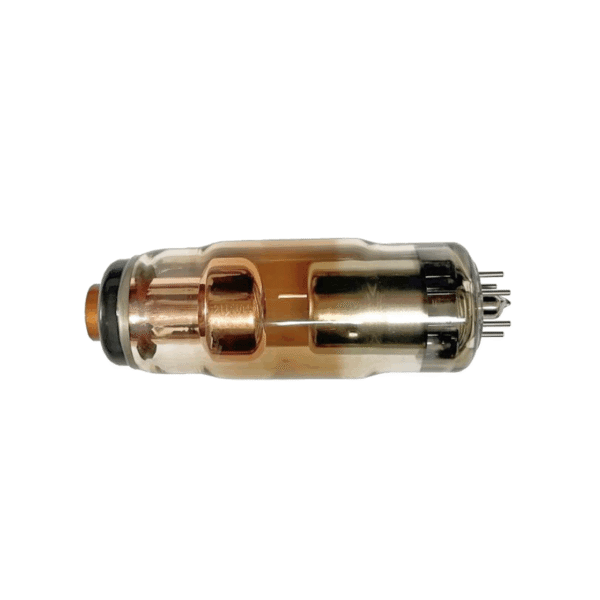

KL31-1.2-100

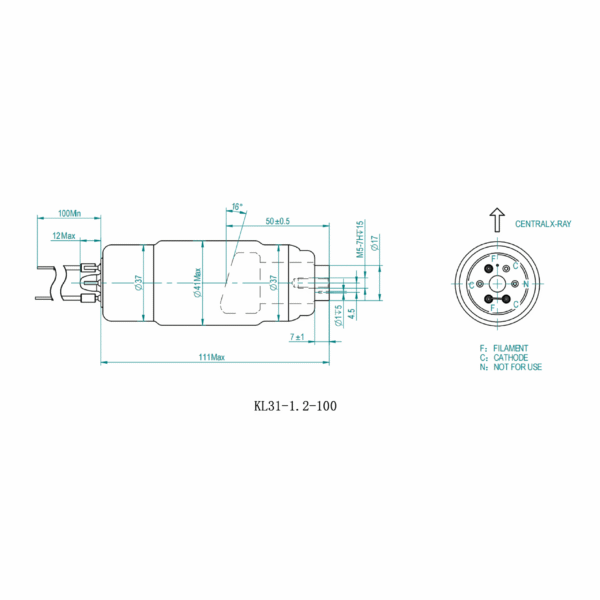

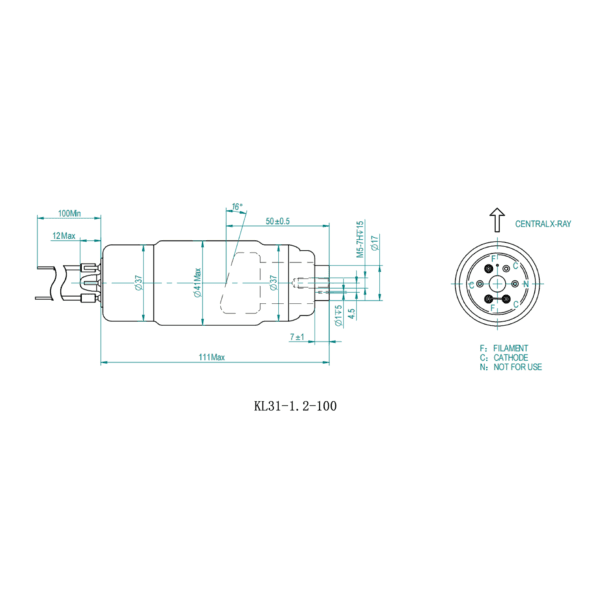

KL31-1.2-100 is a tube model designed for reliable, consistent performance. It features a focal spot size of 1.2 mm, maximum voltage of 100 kV, maximum current of 60 mA, and target angle of 16°. Overall dimensions: 111xφ41 mm.
| Focal Spot | 1.2 |
|---|---|
| Max. Rating (W) | 2400(1s) |
| Max. Voltage (kV) | 100 |
| Target Angle (°) | 16 |
| Anode Heat Capacity (kHU) | 14 |
| Anode Cooling Rate (W) | 180 |
| Max. Current (mA) | 60 |
| Dimensions (mm) | 111xφ41 |
| With SB (mm) | – |
| Applications | Medical |
