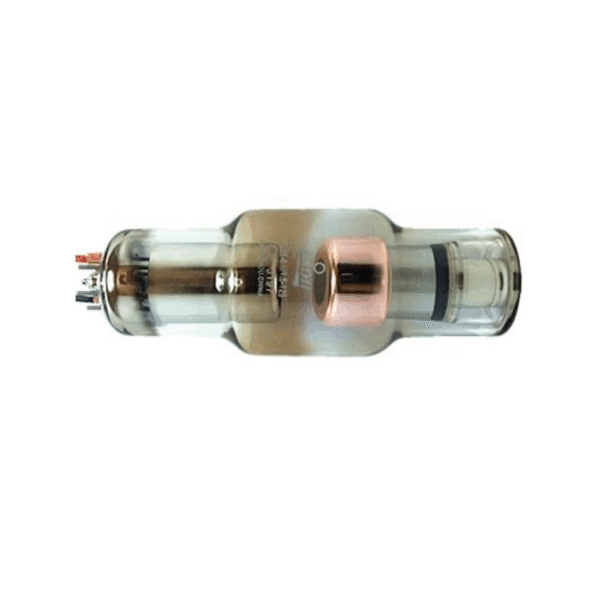

KL10-0.6/1.8-125

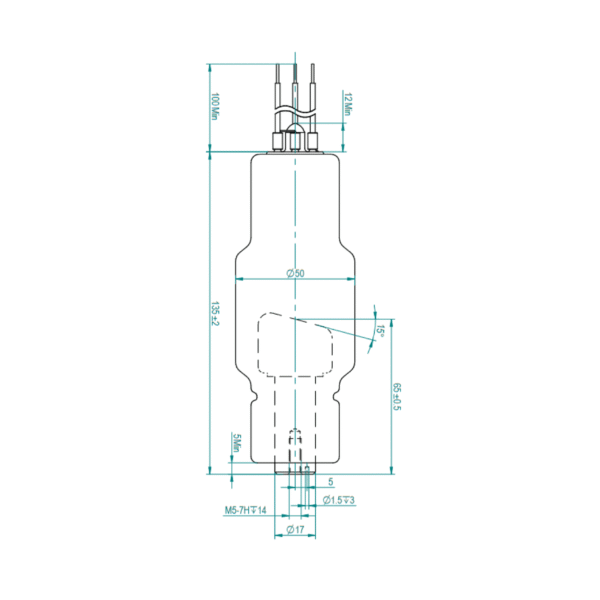

KL10-0.6/1.8-125 is a tube model designed for reliable, consistent performance. It features a focal spot size of 0.6/1.8 mm, maximum voltage of 125 kV, maximum current of 25/100 mA, and target angle of 15°. Overall dimensions: 135xφ50 mm.
| Focal Spot | 0.6/1.8 |
|---|---|
| Max. Rating (W) | 1270/5300 (0.1s) |
| Max. Voltage (kV) | 125 |
| Target Angle (°) | 15 |
| Anode Heat Capacity (kHU) | 30/40 |
| Anode Cooling Rate (W) | 275/600 |
| Max. Current (mA) | 25/100 |
| Dimensions (mm) | 135xφ50 |
| With SB (mm) | 145xφ61 |
| Applications | Medical |
