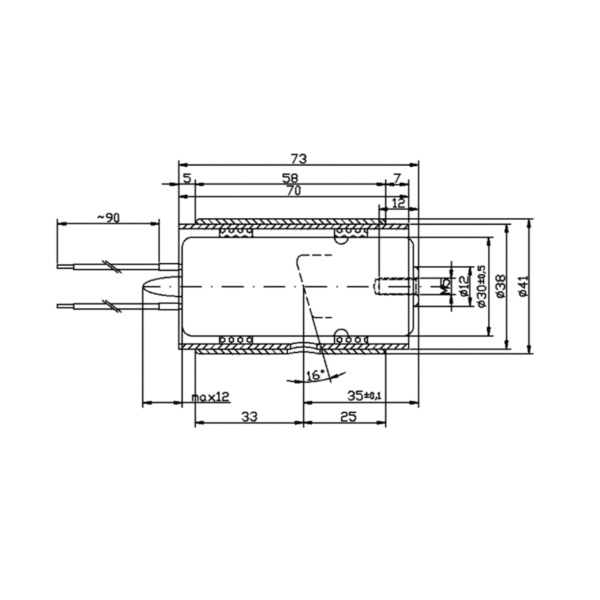

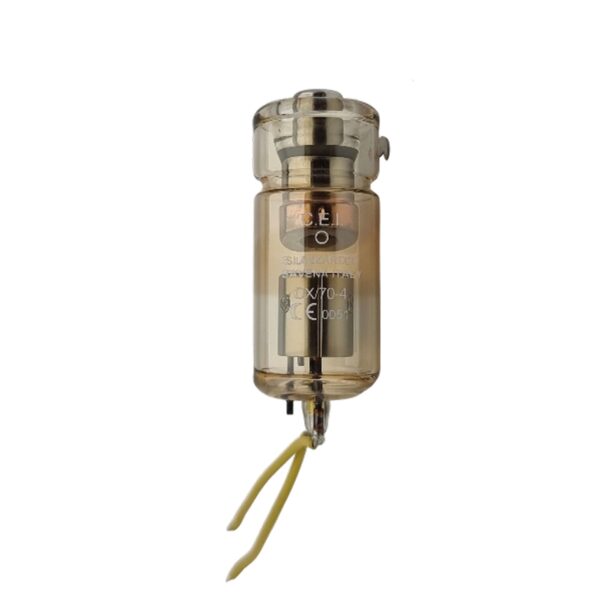

OX/70-4

When mounting tube inserts adopt proper caution, in order to avoid glass bulb breaking

and fragments projection. Please use protective gloves and glasses.

Tube insert connected to H.V. supply is a radiation source: be sure to take all necessary

safety cautions.

 Wash thoroughly with alcohol the external surface of tube insert (care of fire risk).

Avoid contact of dirty surfaces with cleaned tube insert.

 Clamp system inside housing or self-contained units must not mechanically stress the

tube.

 After installation, check the right working of the tube (no fluctuation of tube current

nor crackling)

 Comply with insert thermal parameters, planning and programming the exposure

parameters and cooling pauses. Housing or self-contained units must be provided

with an adequate thermic protection.

 Voltages indicated in charts are valid for transformer supplied with ground center.

 Tube inserts contain environment polluting materials, particularly lead liner tubes.

Please apply to qualified operator for waste disposal, according to local regulation

requirements.

Voltage
Nominal: 70 kV
Maximum (for test): 80 kV
Inverse Voltage
Nominal: 85 kV
Maximum (for test): 93 kV
Focal Spot (IEC 60336:2005): 0.4 mm
Filament Values
Voltage: 1.7 – 3.1 V
Current: 1.5 – 2.1 A
Anode
Material: Tungsten
Target Angle: 16°
Heat Storage Capacity: 7000 J
Maximum Cooling Rate: 110 W
Nominal Input Power at 0.1 s (DC): 600 W
Filtration
Inherent Filtration: 0.5 mm Al
Dimensions
Maximum Diameter: 30 mm
Overall Length: 84 mm (max)
