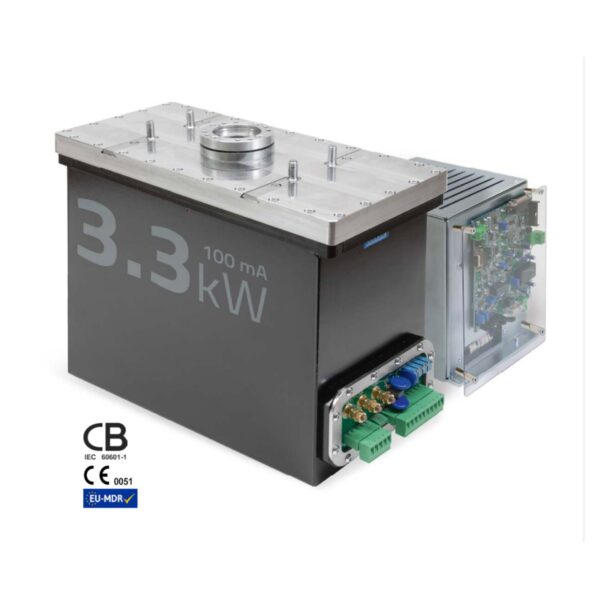

MQD-3F KIT INV HF4

MQD-3F FOR RADIOGRAPHY & FLUOROSCOPY APPLICATION
MQD Series with Stationary anode insert

Descriptoin
Maximum Output Power: 3.3 kW
High Voltage Range to the X-ray Tube: 40 – 110 kV (up to 120 kV OPT)
Maximum Tube Current: 100 mA
Operating Frequency: 40 kHz
Filament Transformer Supply Frequency: HF 16 kHz / MF 400 Hz
Continuous Thermal Dissipation (with CFD Inverter): 65 W
Focal Spot Sizes: 0.5/1.5 & 0.6/1.5
Tube Target Angle: 12° & 16°
Total Thermal Capacity: 520 kJ
Weight: 19 kg
