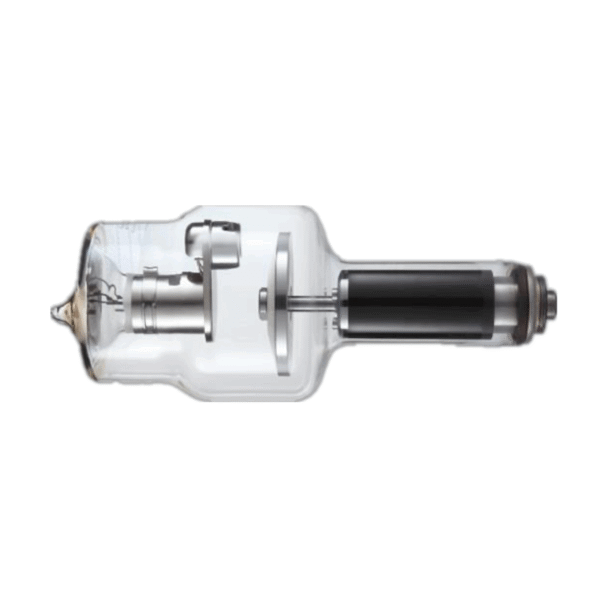

KL72-0.6/1.5-130
KL72-0.6/1.5-130 is a tube model designed for reliable, consistent performance. It features a focal spot size of 0.6/1.5 mm, maximum voltage of 130 kV, maximum current of 300/750 mA, and target angle of 13.5. Overall dimensions: 199xφ95 mm.
| Focal Spot | 0.6/1.5 |
|---|---|
| Max. Rating (W) | 17/52 (0.1s) |
| Max. Voltage (kV) | 130 |
| Target Angle (°) | 13.5 |
| Anode Heat Capacity (kHU) | 300 |
| Anode Cooling Rate (W) | 750 |
| Max. Current (mA) | 300/750 |

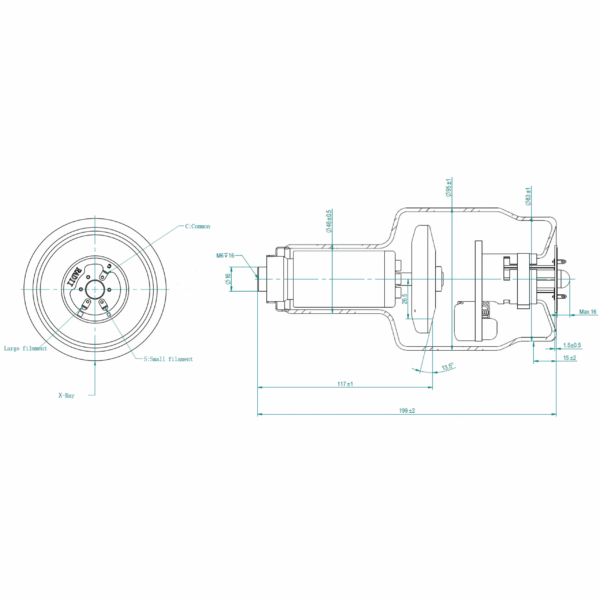

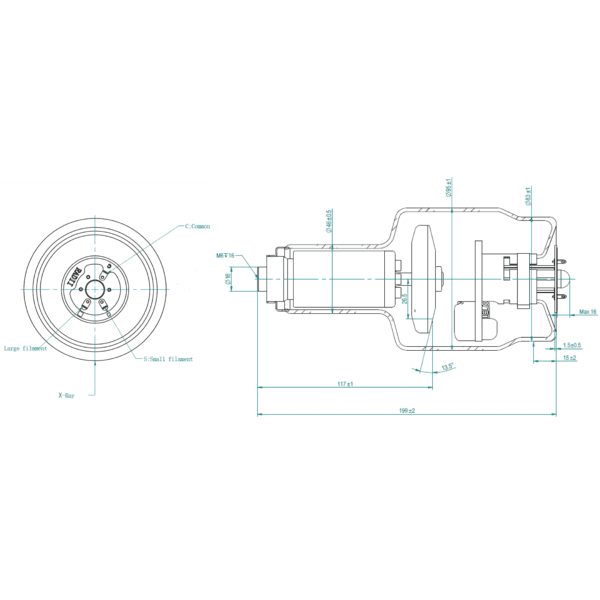

| Dimensions (mm) | 199xφ95 |
| Applications | Medical |
