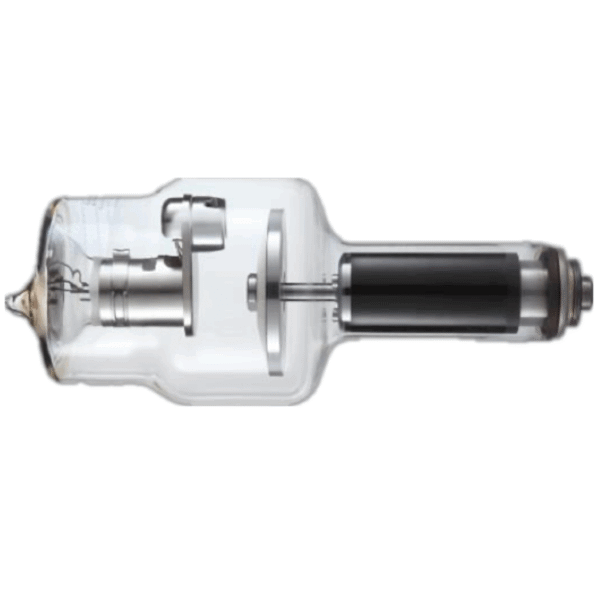

KL70-0.7/1.3-130
KL70-0.7/1.3-130 is a tube model designed for reliable, consistent performance. It features a focal spot size of 0.7/1.3 mm, maximum voltage of 130 kV, maximum current of 320/500 mA, and target angle of 14.5. Overall dimensions: 235xφ108 mm.
| Focal Spot | 0.7/1.3 |
|---|---|
| Max. Rating (W) | 20/40 (0.1s) |
| Max. Voltage (kV) | 130 |
| Target Angle (°) | 14.5 |
| Anode Heat Capacity (kHU) | 300 |
| Anode Cooling Rate (W) | 750 |
| Max. Current (mA) | 320/500 |

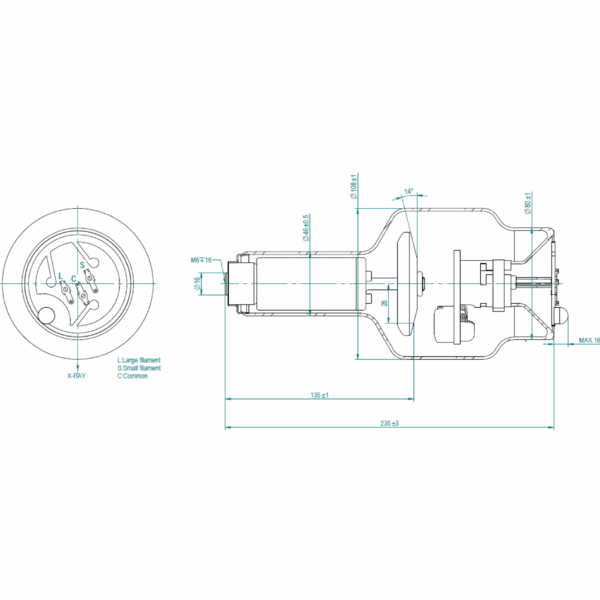

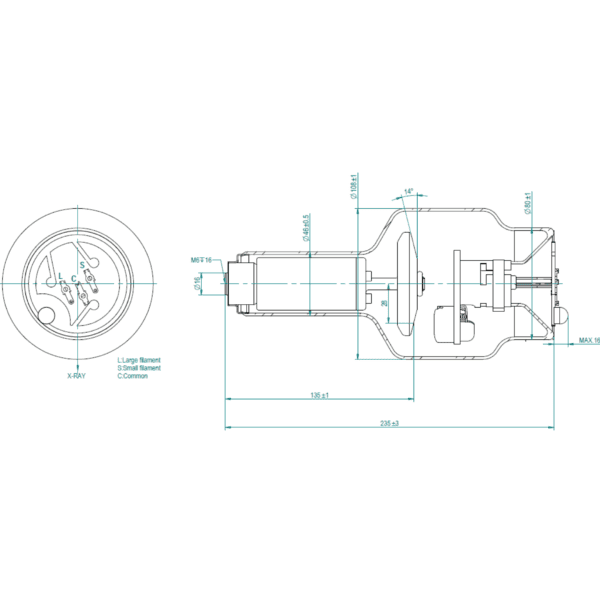

| Dimensions (mm) | 235xφ108 |
| Applications | Medical |
