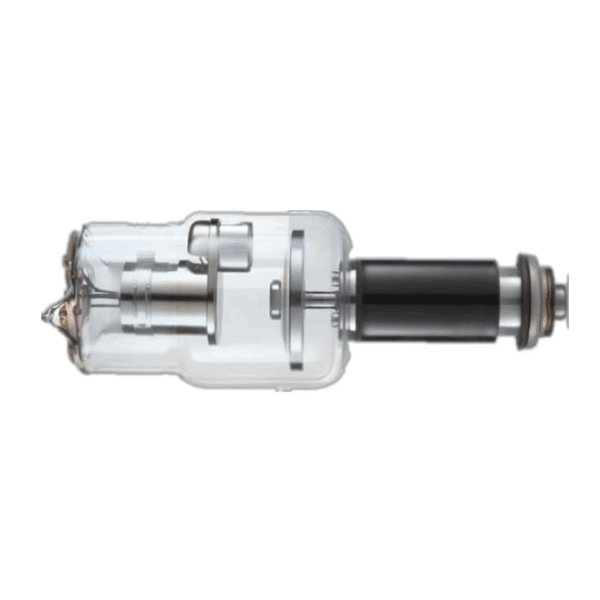

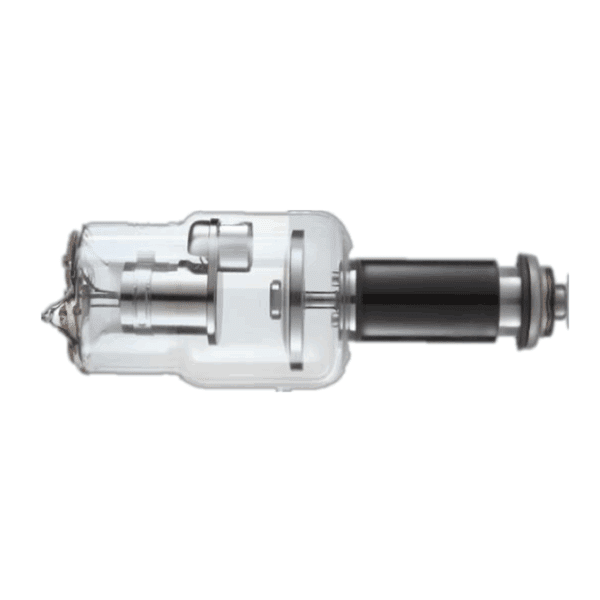

KL67-0.6/1.3-130
KL67-0.6/1.3-130 is a tube model designed for reliable, consistent performance. It features a focal spot size of 0.6/1.3 mm, maximum voltage of 130 kV, maximum current of 250/500 mA, and target angle of 13.5. Overall dimensions: 215xφ80 mm.
| Focal Spot | 0.6/1.3 |
|---|---|
| Max. Rating (W) | 11/32 (0.1s） |
| Max. Voltage (kV) | 130 |
| Target Angle (°) | 13.5 |
| Anode Heat Capacity (kHU) | 210 |
| Anode Cooling Rate (W) | 300 |
| Max. Current (mA) | 250/500 |

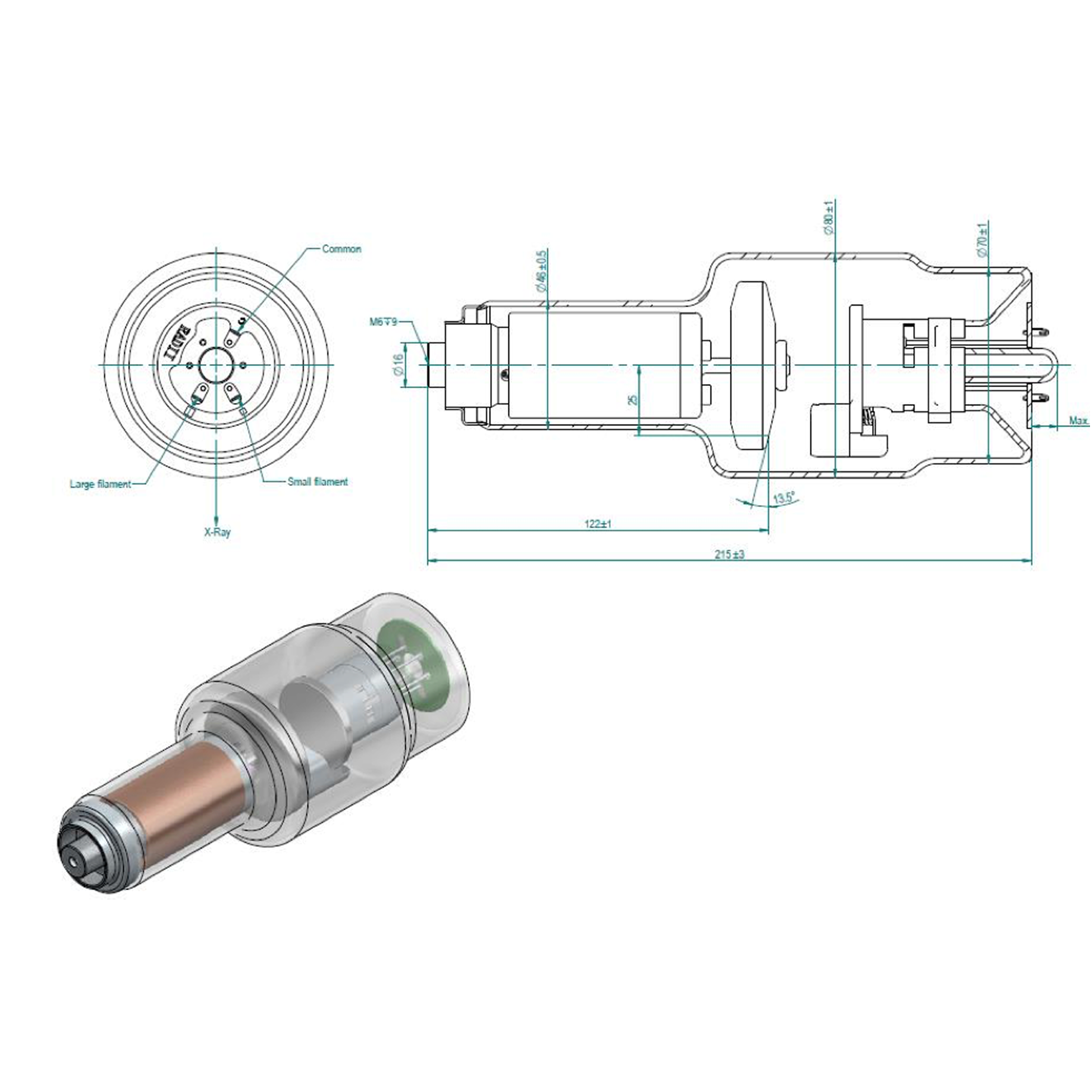

| Dimensions (mm) | 215xφ80 |
| Applications | Medical |
