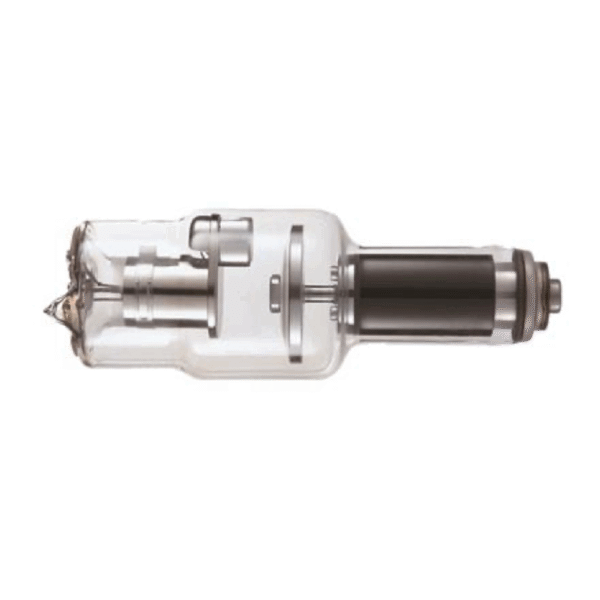

KL66-0.3/0.6-130
KL66-0.3/0.6-130 is a tube model designed for reliable, consistent performance. It features a focal spot size of 0.3/0.6 mm, maximum voltage of 130 kV, maximum current of 120/300 mA, and target angle of 10.0. Overall dimensions: 210xφ80 mm.
| Focal Spot | 0.3/0.6 |
|---|---|
| Max. Rating (W) | 5.7/19 (0.1s) |
| Max. Voltage (kV) | 130 |
| Target Angle (°) | 10 |
| Anode Heat Capacity (kHU) | 210 |
| Anode Cooling Rate (W) | 300 |
| Max. Current (mA) | 120/300 |

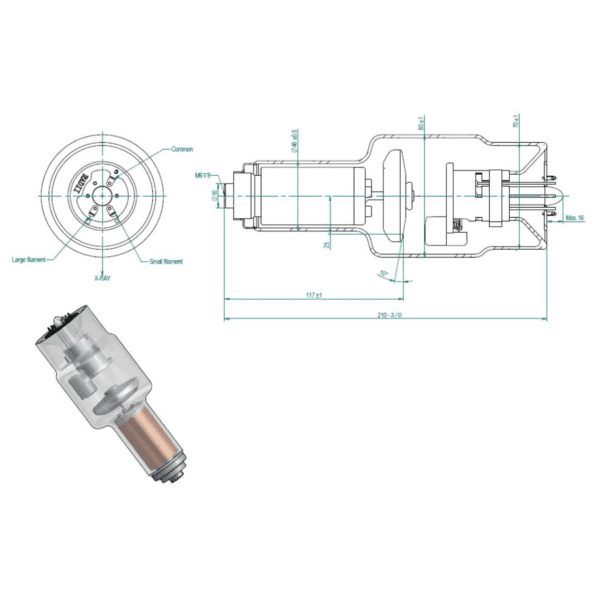

| Dimensions (mm) | 210xφ80 |
| Applications | Medical |
