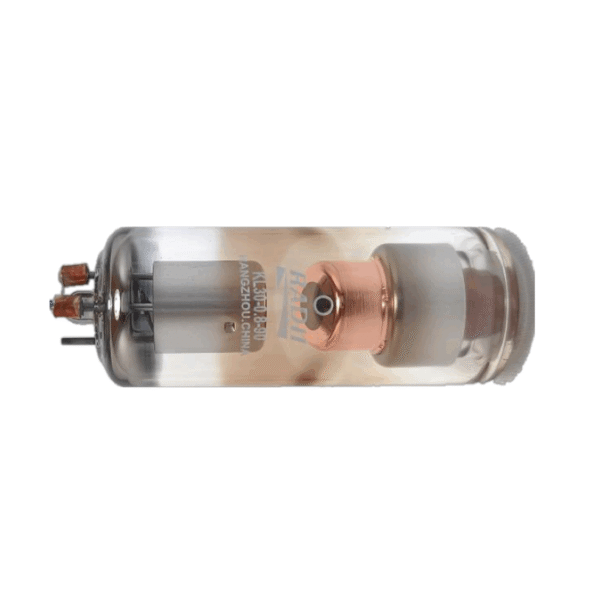

KL30-0.8-90

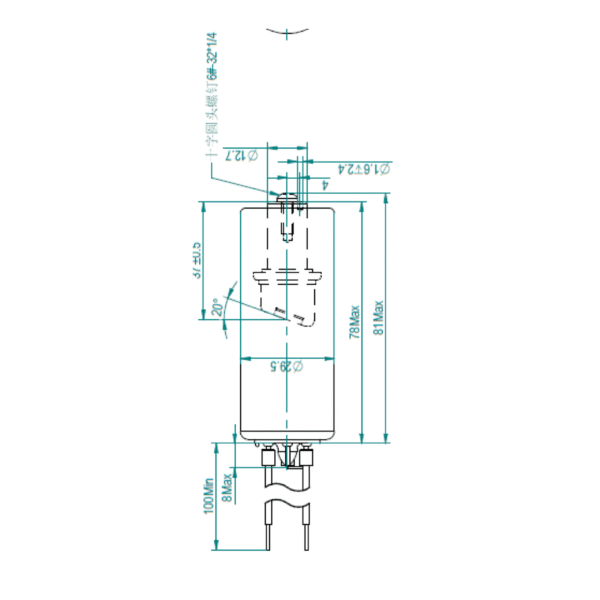

KL30-0.8-90 is a tube model designed for reliable, consistent performance. It features a focal spot size of 0.8 mm, maximum voltage of 90 kV, maximum current of 40 mA, and target angle of 20°. Overall dimensions: 81xφ29.5 mm.
| Focal Spot | 0.8 |
|---|---|
| Max. Rating (W) | 1800 (0.1s) |
| Max. Voltage (kV) | 90 |
| Target Angle (°) | 20 |
| Anode Heat Capacity (kHU) | 7.0 |
| Anode Cooling Rate (W) | 210 |
| Max. Current (mA) | 40 |
| Dimensions (mm) | 81xφ29.5 |
| With SB (mm) | – |
| Applications | Medical |
