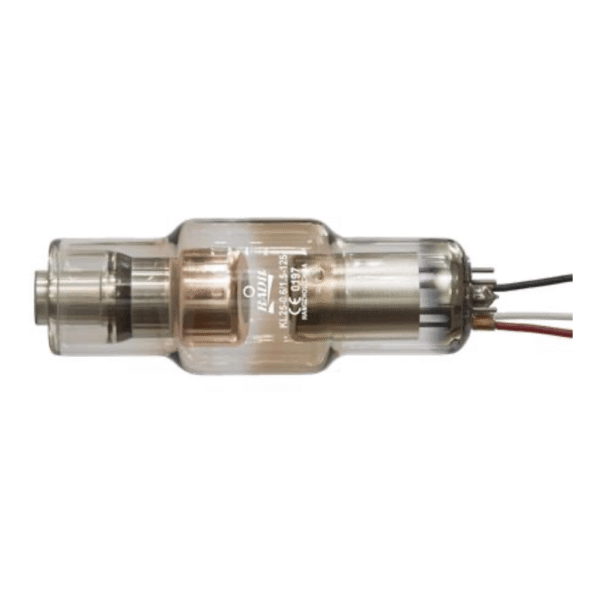

KL25-0.6/1.5-110
KL25-0.6/1.5-110 is a tube model designed for reliable, consistent performance. It features a focal spot size of 0.6/1.5 mm, maximum voltage of 110 kV, maximum current of 26/80 mA, and target angle of 12°. Overall dimensions: 135xφ50 mm.
| Focal Spot | 0.6/1.5 |
|---|---|
| Max. Rating (W) | 1300/4000 (0.1s) |
| Max. Voltage (kV) | 110 |
| Target Angle (°) | 12 |
| Anode Heat Capacity (kHU) | 30/40 |
| Anode Cooling Rate (W) | 275/600 |
| Max. Current (mA) | 26/80 |

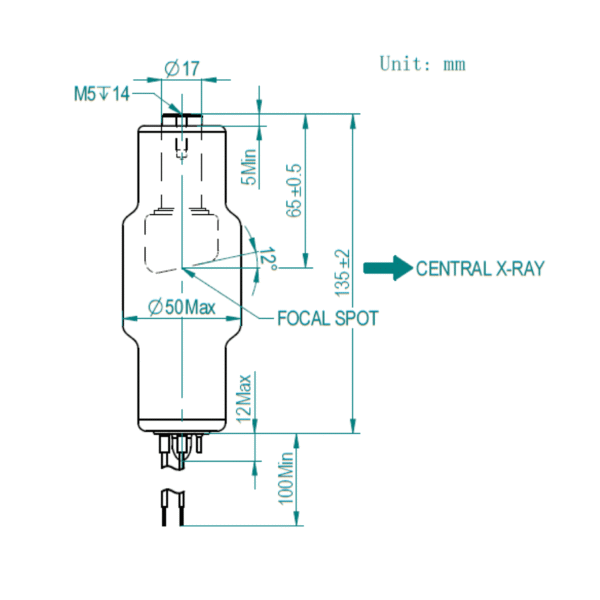

| Dimensions (mm) | 135xφ50 |
| With SB (mm) | 145xφ61 |
| Applications | Medical |
