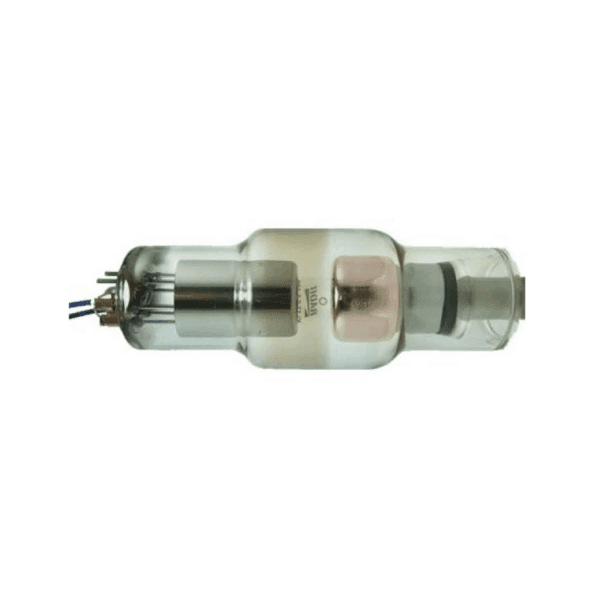

KL20-2.8-110

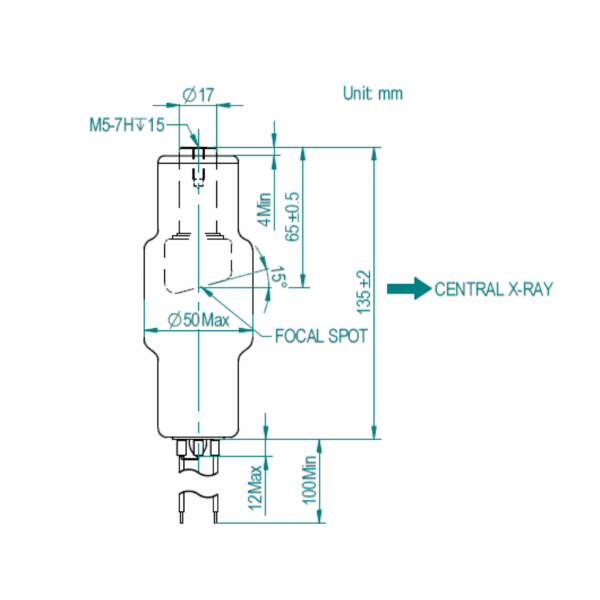

KL20-2.8-110 is a tube model designed for reliable, consistent performance. It features a focal spot size of 2.8 mm, maximum voltage of 110 kV, maximum current of 100 mA, and target angle of 19°. Overall dimensions: 135xφ50 mm.
| Focal Spot | 2.8 |
|---|---|
| Max. Rating (W) | 7000 (0.1s) |
| Max. Voltage (kV) | 110 |
| Target Angle (°) | 19 |
| Anode Heat Capacity (kHU) | 30 |
| Anode Cooling Rate (W) | 250 |
| Max. Current (mA) | 100 |
| Dimensions (mm) | 135xφ50 |
| With SB (mm) | 145xφ61 |
| Applications | Medical |
